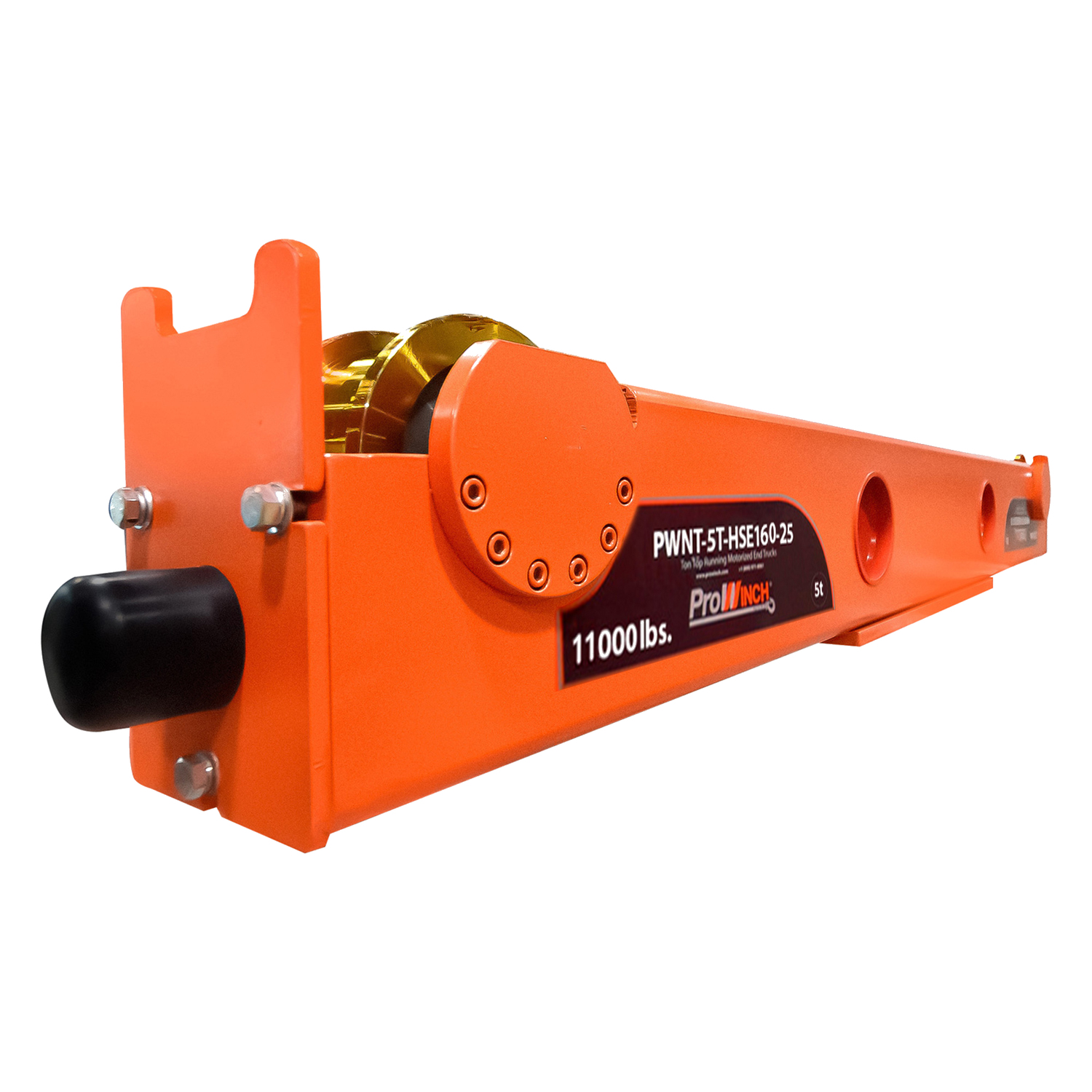

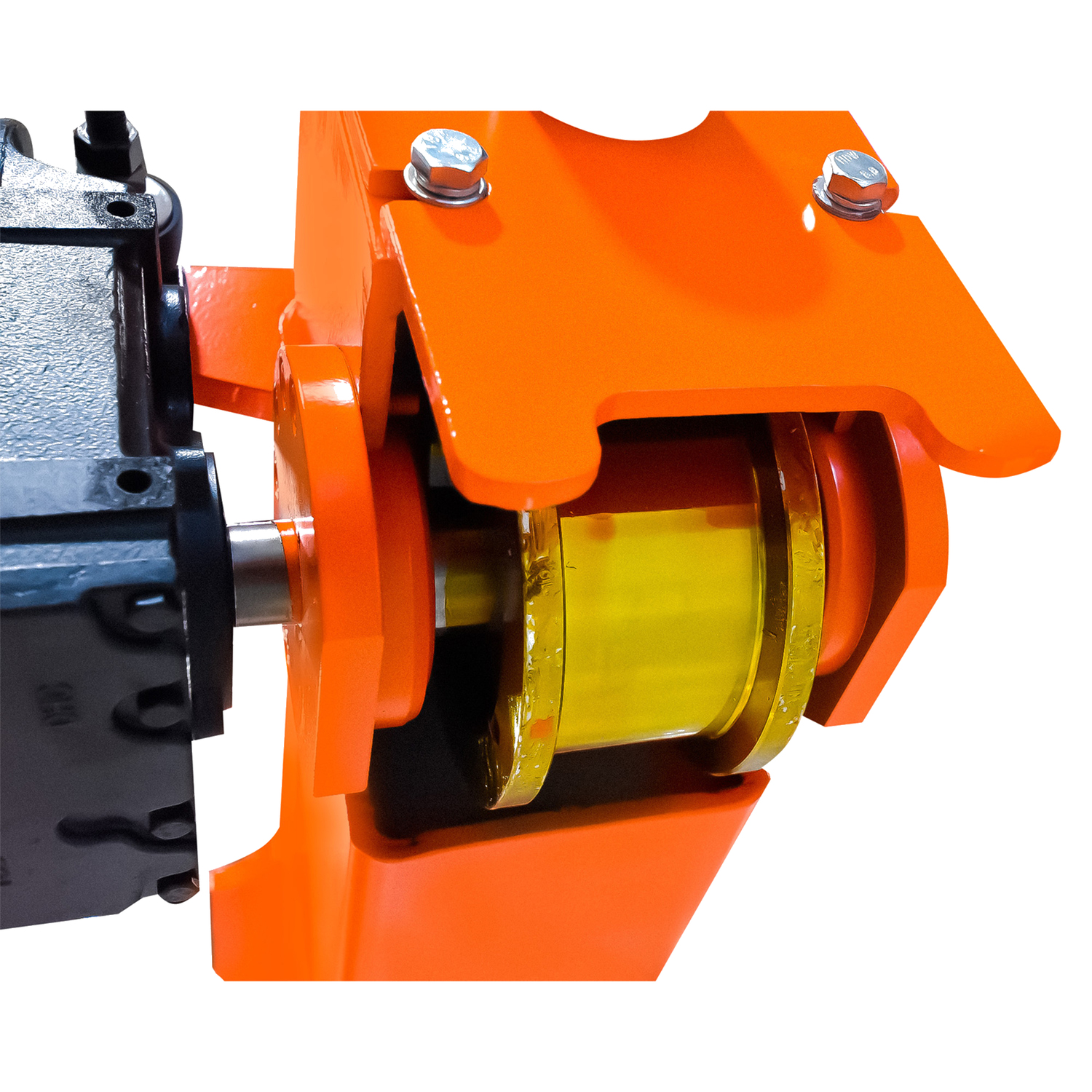

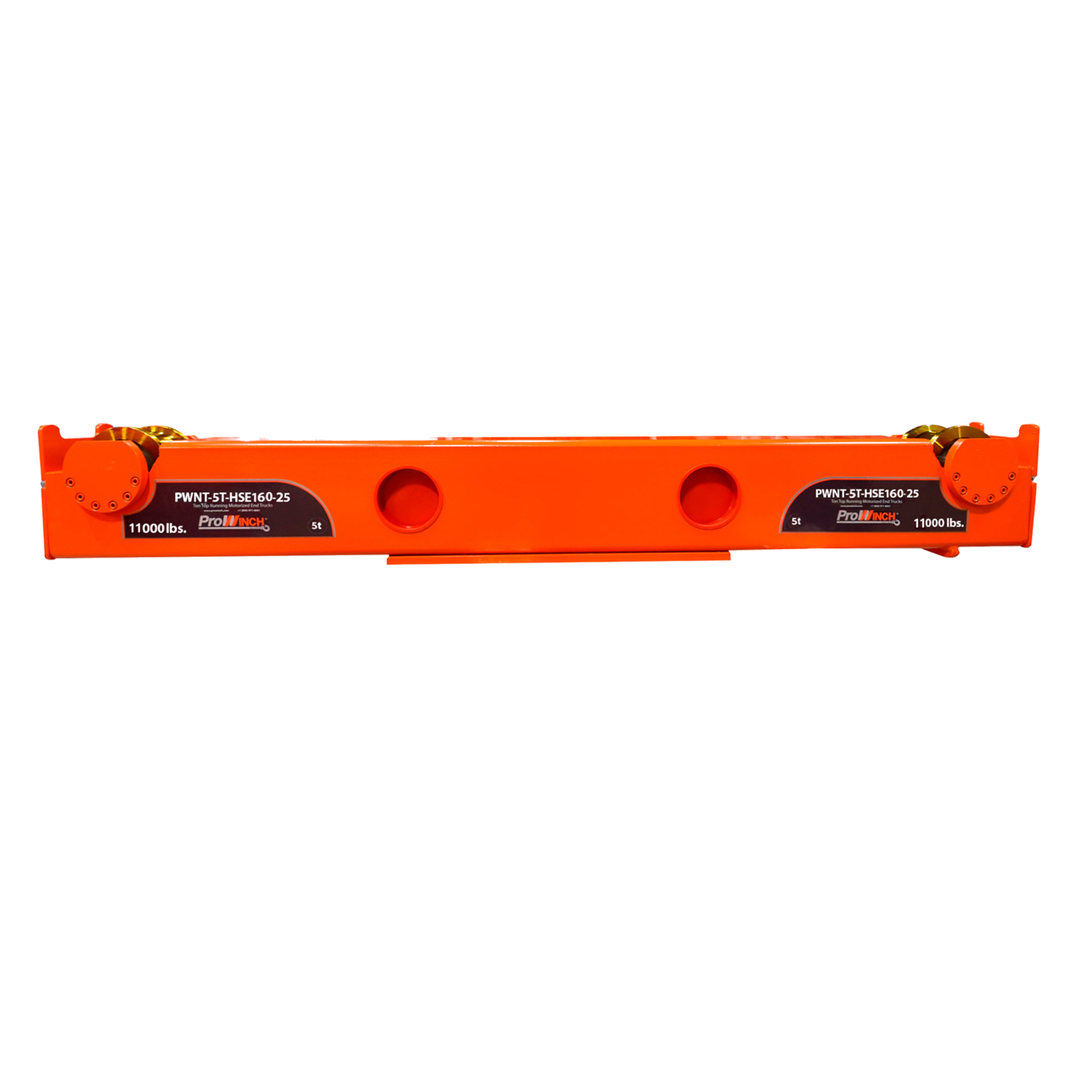

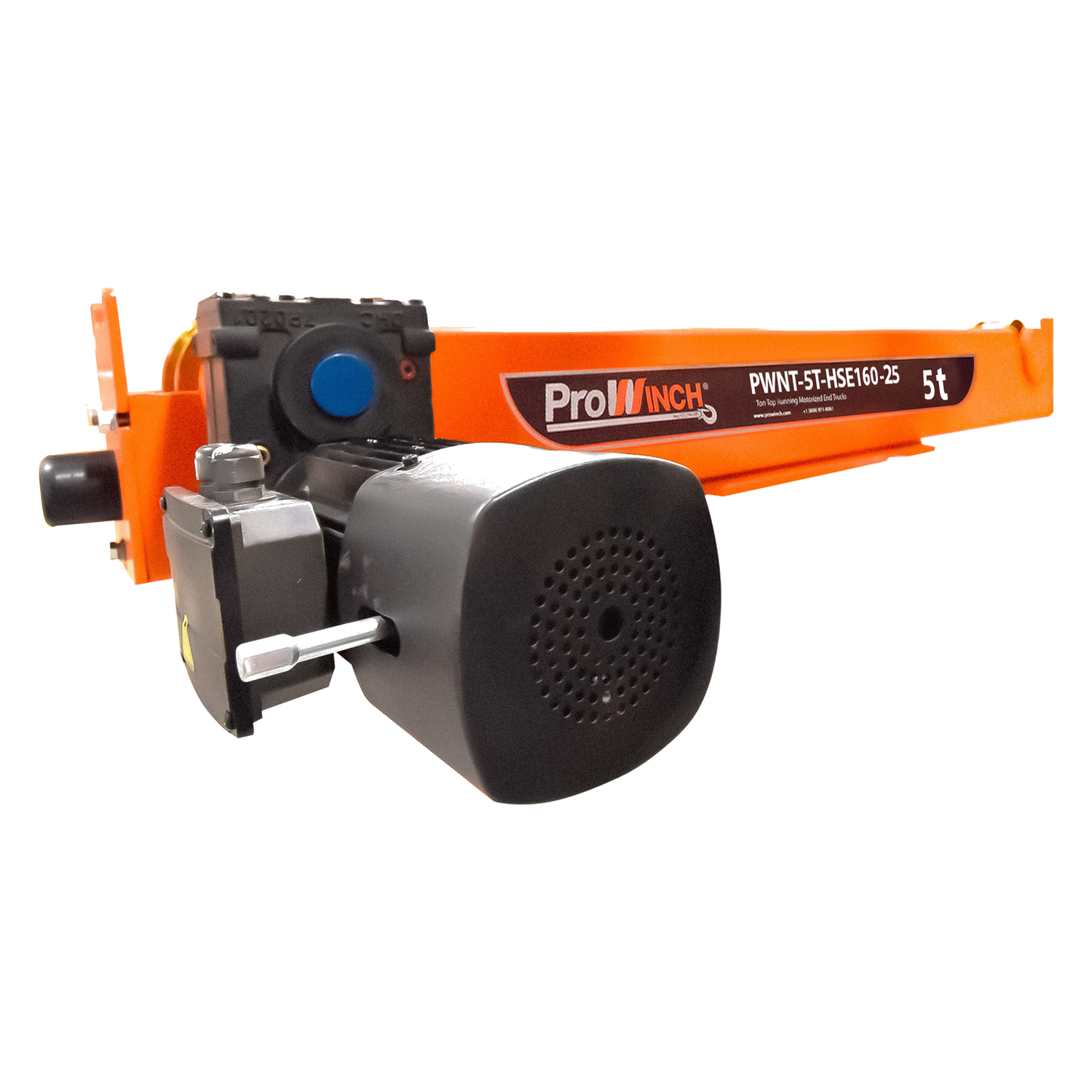

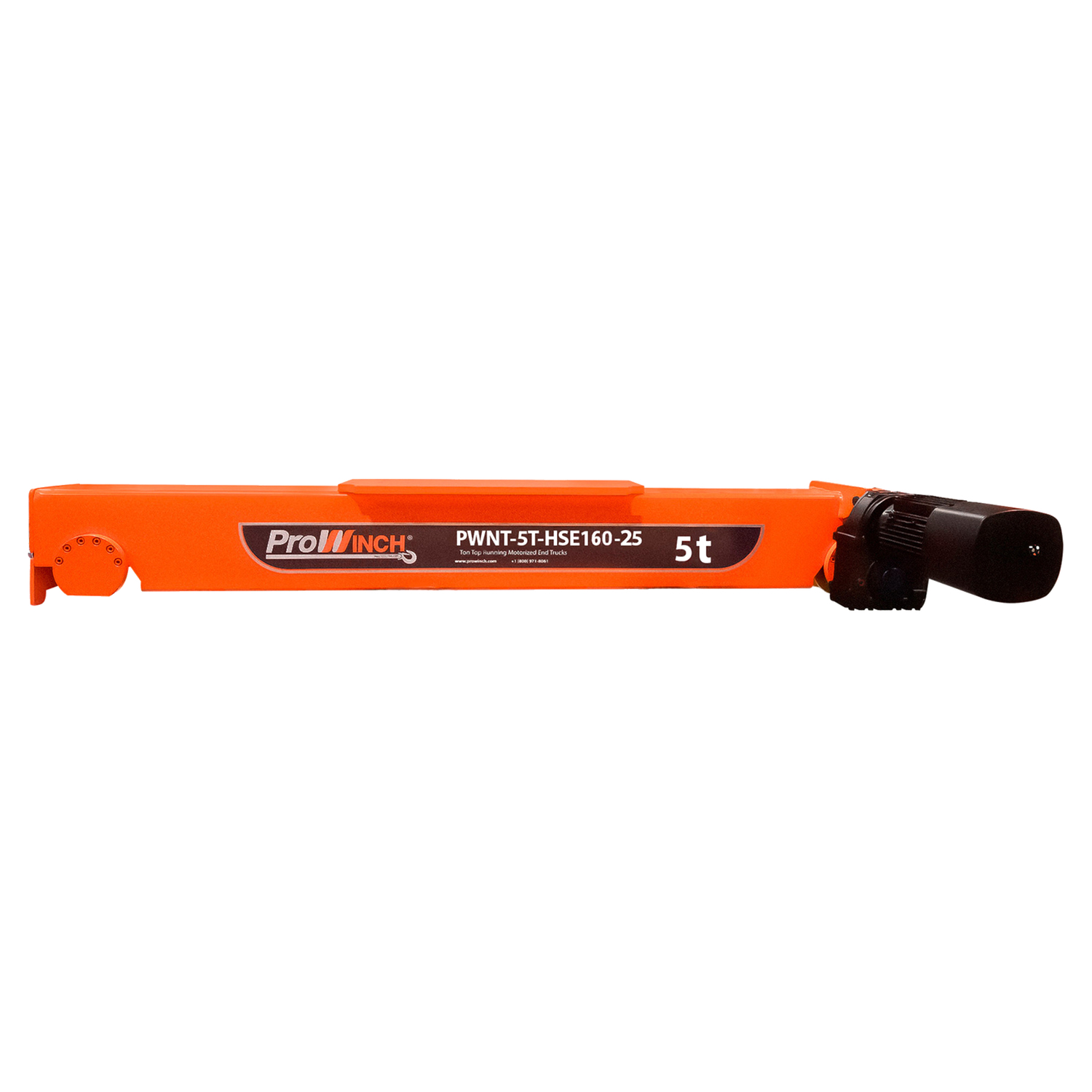

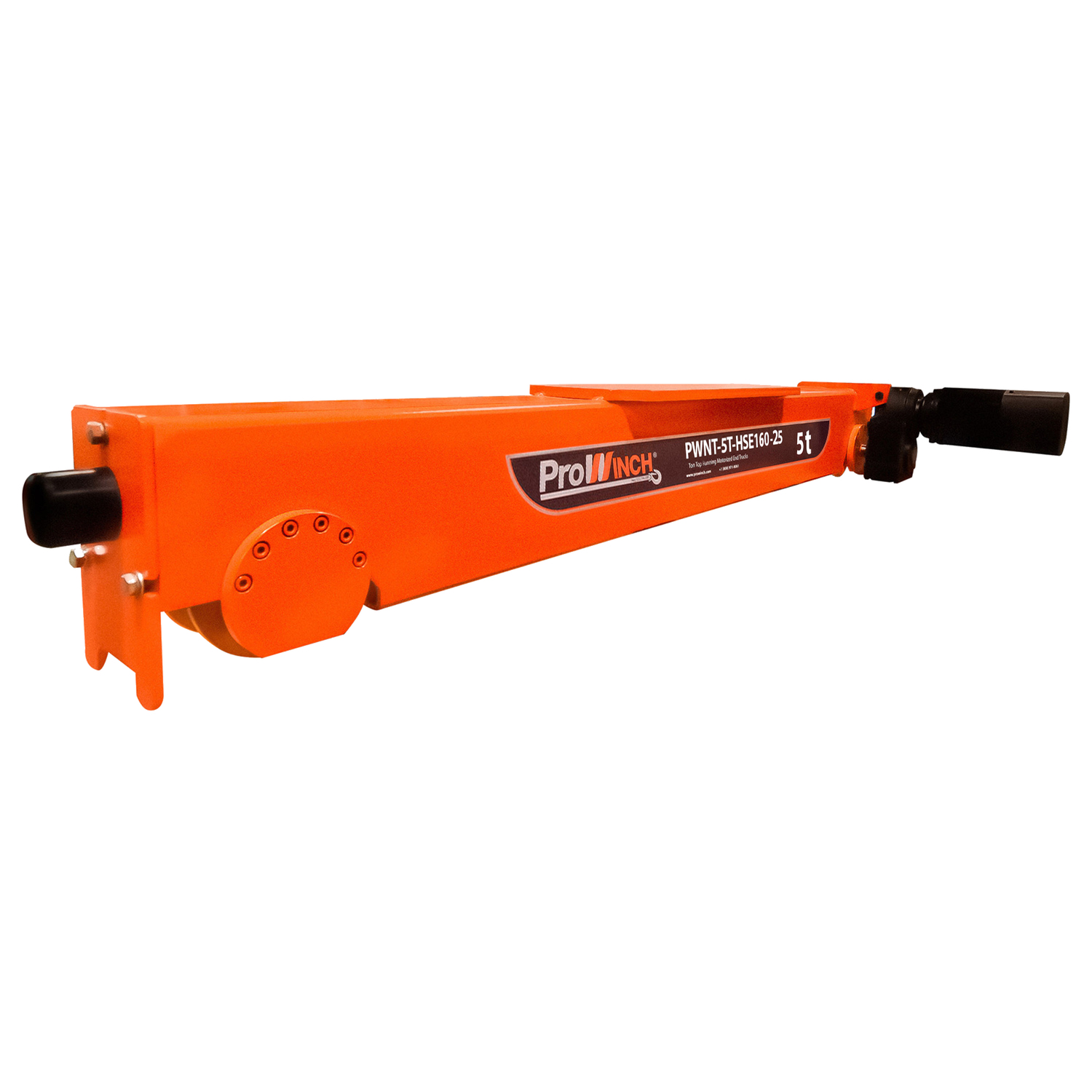

5 Ton Top Running Motorized End Trucks Single Girder up to 57ft Span 220/440V 3P
SKU: PWNT-5T-HSE160-25 Solicitar
SKU: PWNT-5T-HSE160-25 Solicitar
Características Esenciales
- For heavy-duty class “C” single girder crane applications
- Drives and brakes are compatible with Variable Frequency Drive (VFD)
- Suitable for use on ASCE crane rail or square bar
- 3 Años de Garantía, Servicio y Atención al Cliente en Mexico
For heavy-duty class “C” single girder crane applications, Top running motorized end trucks. Include 2 trucks; 2 gear motors with D.C. brakes, rubber bumpers. All trucks are fully painted. Runway Rail ASCE # 40
- Capacidad de Carga 5 Ton
- Velocidad /min 66 ft
- Numero de Velocidades 1 Speed - Optional Variable Speed
- Voltaje 3 Phase 220~240/440~480V 60Hz
- Potencia Total Watts 0.37 x 2
- Luz Maxima 53 Ft
- Material Steel
- Clase de Servicio H4/M5/2m/Class D
- Freno Motor Yes
- Protección IEC Motor IP54
- Variador de Frequencia Optional 1.1 Kw
- Freno Dinámico Only with VFD Optional
- Control Not Included. Optional single Speed, 2 Speed and Variable Speed
- Rango de ancho de la Viga Any
- Normas ASME / CMAA / Nch
- Garantía 3 Year
Peso & Dimensiones
- Largo de testera 2500 mm
